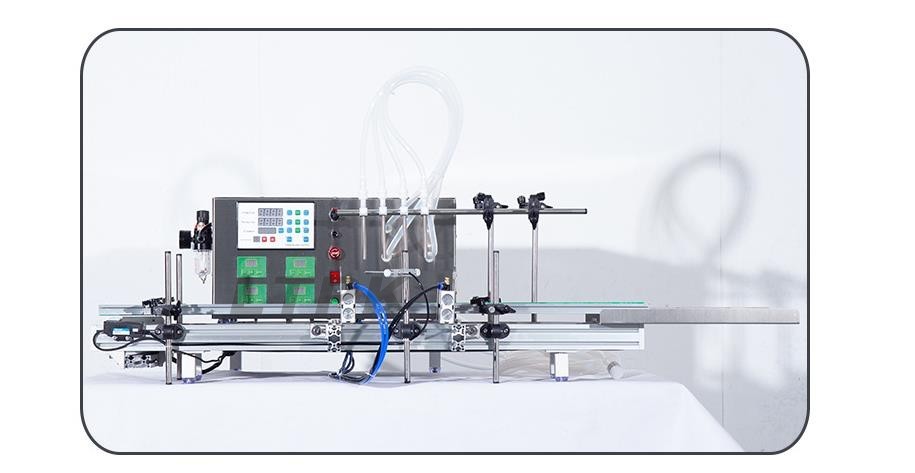

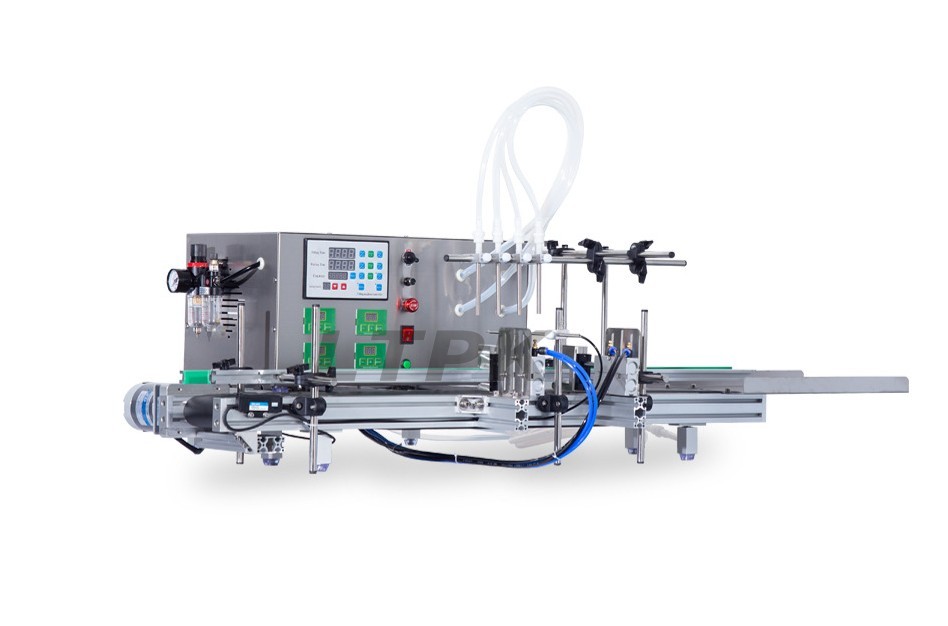

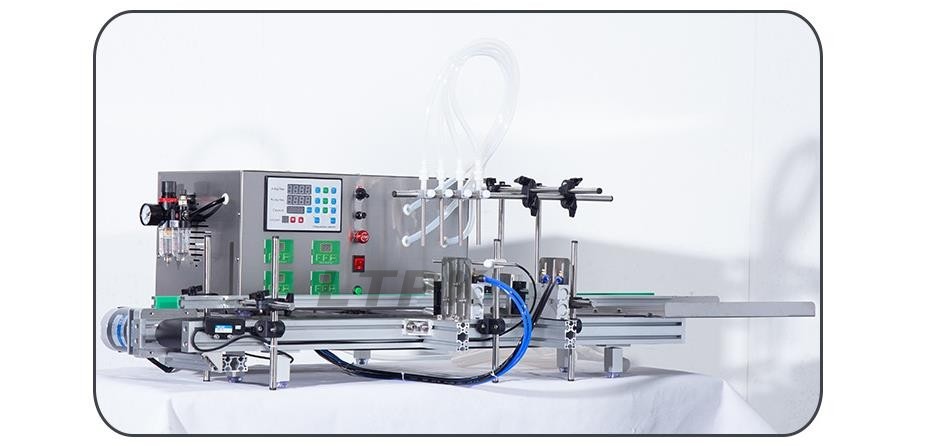

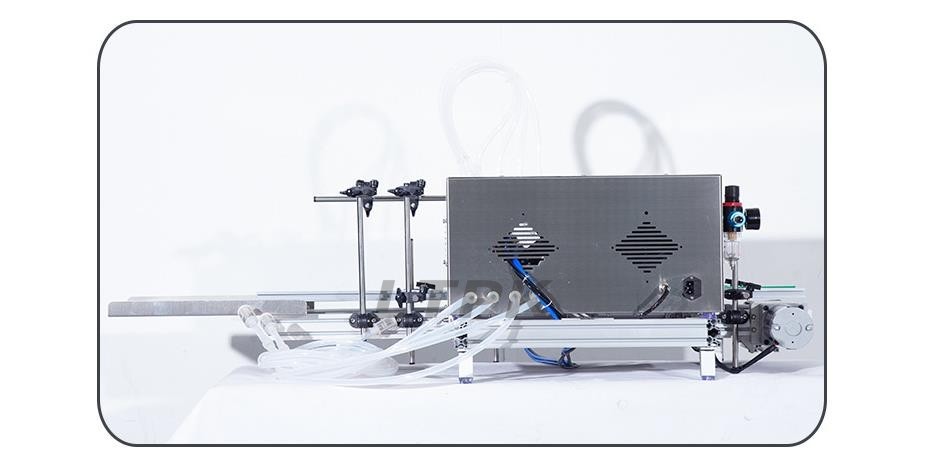

LTPK Semi Automatic Desktop CNC Liquid Filling Machine With Conveyor 110V-220V For Perfume Filling Machine Water Filler

LTPK Semi Automatic Desktop CNC Liquid Filling Machine With Conveyor 110V-220V For Perfume Filling Machine Water Filler

Desktop full automatic machine is very efficient with high cost performance.It is widely used in medicine, daily chemical and other industries such as essential oils,perfumes,juice liquid etc.Diaphragm pump machine are widely used on milk,water,wine,juice filling etc.Price is most ffordable.

Technical Parameters

Power Supply Voltage	110/220V 50-60HZ
Power	250W
Maximum flow velocity	4000ml/min(Each nozzle and base on water)
Working speed	1500-3000 bottles/hour(depends on bottle size and liquid)
Air pressure	0.3-0.4MPa
Filling accuracy	≤+1% (For water)

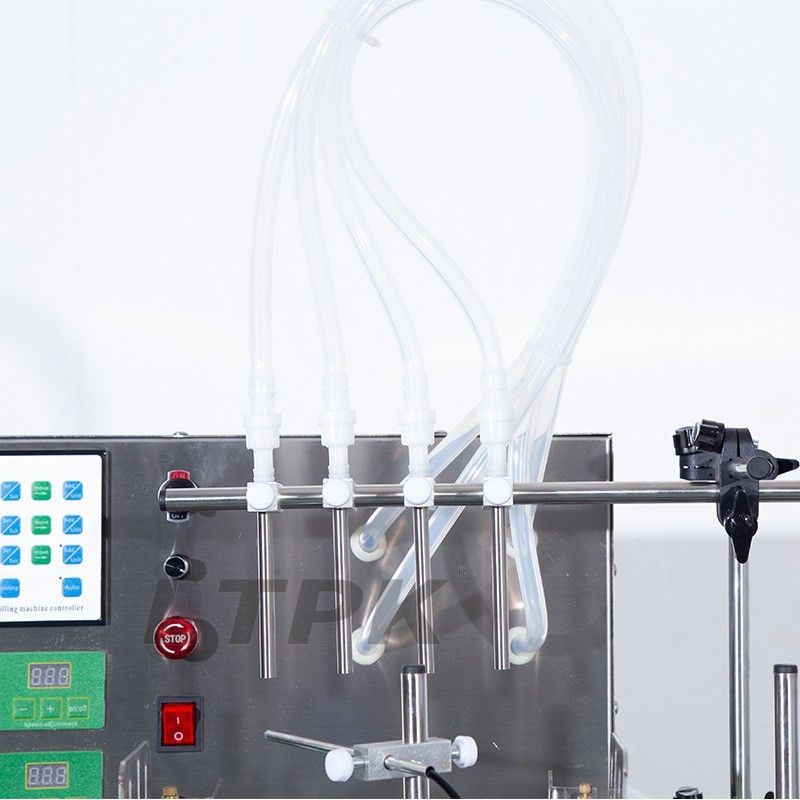

Diameter of filling nozzle	6/8mm
Delay Range	0.01-999.9s
Count Range	1-99999 Times
Package size	About 1110650420mm
Gross weight	About 46.5kg
Filling Volume	3-1000ml(220V)3- 500ml(110V)since the power of 110v machine is not large, so we recommend 3-500ml for each nozzle
Size of air compressor connector	OD 8mm
Bottle height	＜220mm(Can be customized,max height 300mm)
