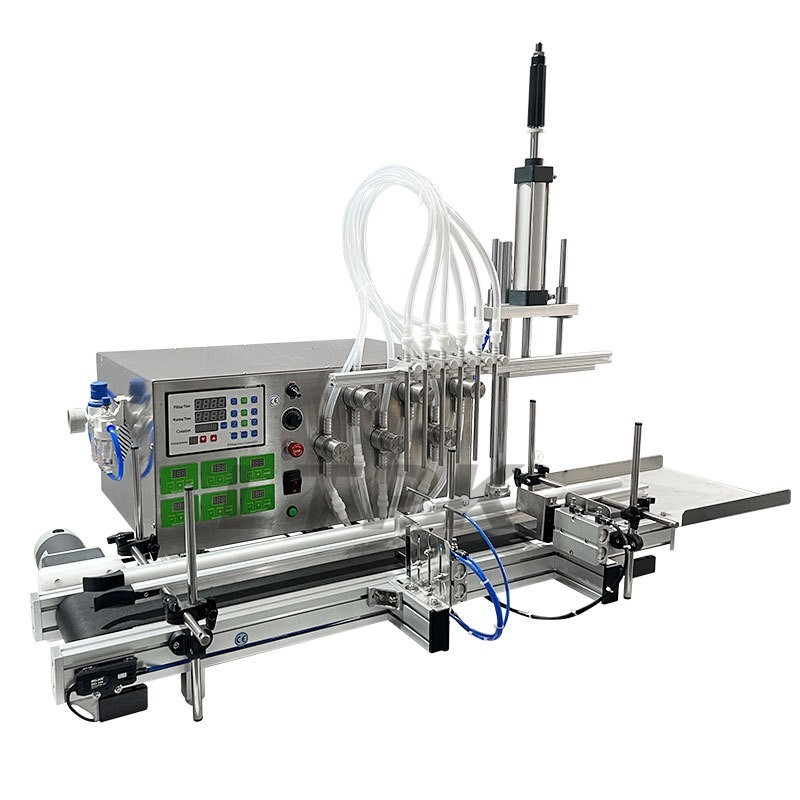

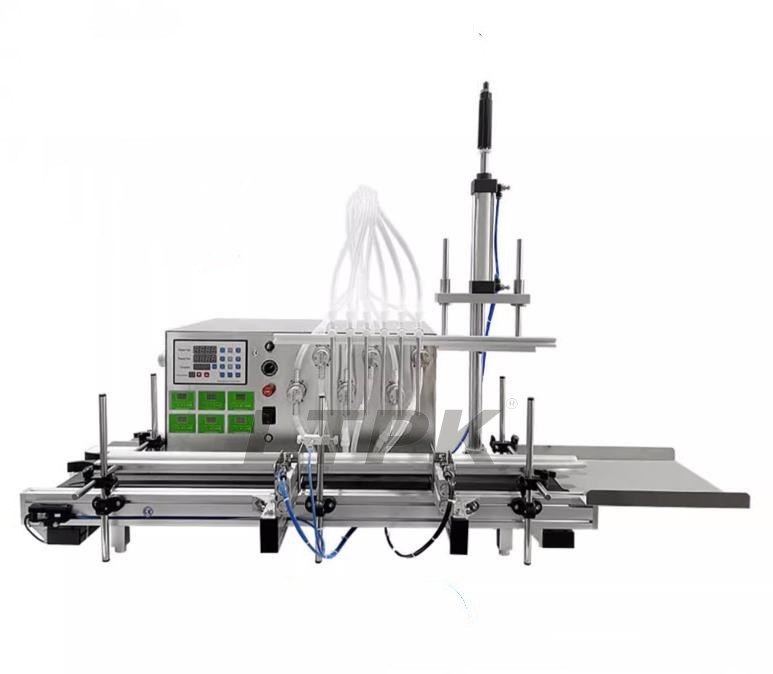

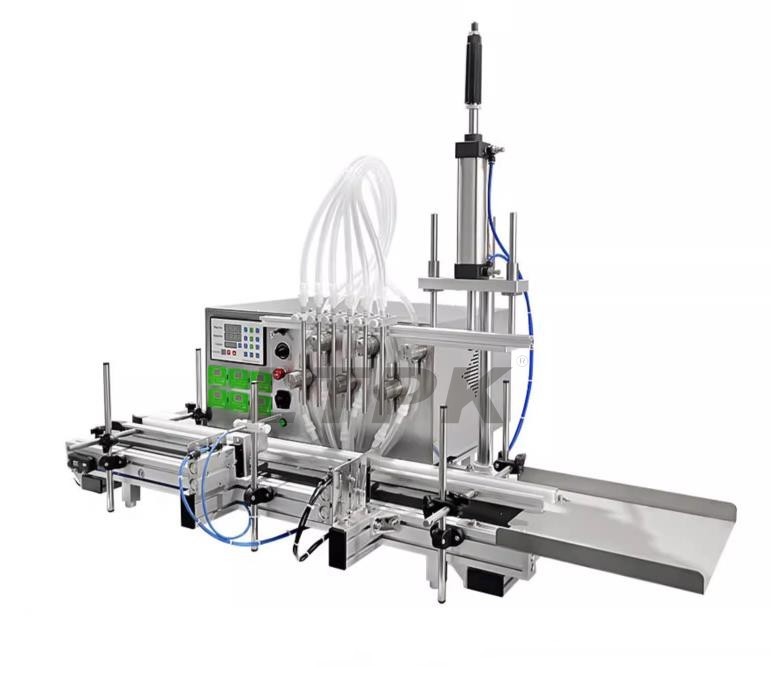

LTPK LT-DTMP6 Six-head Magnetic Pump Liquid 1 Liter Small Scale Glass Bottle Filling Machine With Conveyor

The automatic tabletop filling machine is suitably applied on low viscosity liquid like water,juice,perfume milk,essential oil etc.This machine is equipped with magnetic pump,it is driven by the force of magnets.It does not have the shaft coming out of the pump casing,hence there is no need for shaft sealing devises such as gland packing or mechanical seals.The liquid will not leaking in this situation.As a result,people working on or near the pump are not exposed to dangers from hazardous,corrosive,flammable or explosive fluids, and other toxic chemicals.In addition,expensive liquids are not wasted.

EMAIL

The automatic tabletop filling machine is suitably applied on low viscosity liquid like water,juice,perfume milk,essential oil etc.This machine is equipped with magnetic pump,it is driven by the force of magnets.It does not have the shaft coming out of the pump casing,hence there is no need for shaft sealing devises such as gland packing or mechanical seals.The liquid will not leaking in this situation.As a result,people working on or near the pump are not exposed to dangers from hazardous,corrosive,flammable or explosive fluids, and other toxic chemicals.In addition,expensive liquids are not wasted.

Application:

This filling machine is widely used in food,beverage,chemical,household products,personal care pharmaceutical.biomedical industries.

Technical Parameters:

Machine model

LT-DTMP6A

LT-DTMP6B

Power supply

110/220V 50-60HZ

Maximum flow velocity

5500ml/min

(Each nozzle and base on water)

9000ml/min

(Each nozzle and base on water)

Working speed

30-40 bottles/min

(based on 50-1000ml filling volume)

40-55 bottles/min

(based on 50-1000ml filling volume)

Air pressure

0.3-0.4MPa

Filling accuracy

≤±1% (For water)

Diameter of Flling Nozzle

6/8mm

Delay Range

0.01-999.9s

Count Range

1-99999 Times

Filling Volume

3-1000ml(220V)3- 500ml(110V)
