LTPK LT-DL800 MANUAL ELECTROMAGNETIC INDUCTION SEALING MACHINE

1.Portable All-In-One machine. not like the other induction machine which's the operation panal and the sealing part are separate.
2.The panel is simple to operate, plug and play, overheat protection circuit. Copper induction coil, high efficiency, low consumption
3. All-around cooling holes provide faster ventilation and heat dissipation, preventing from short circuits caused by motor overheating.

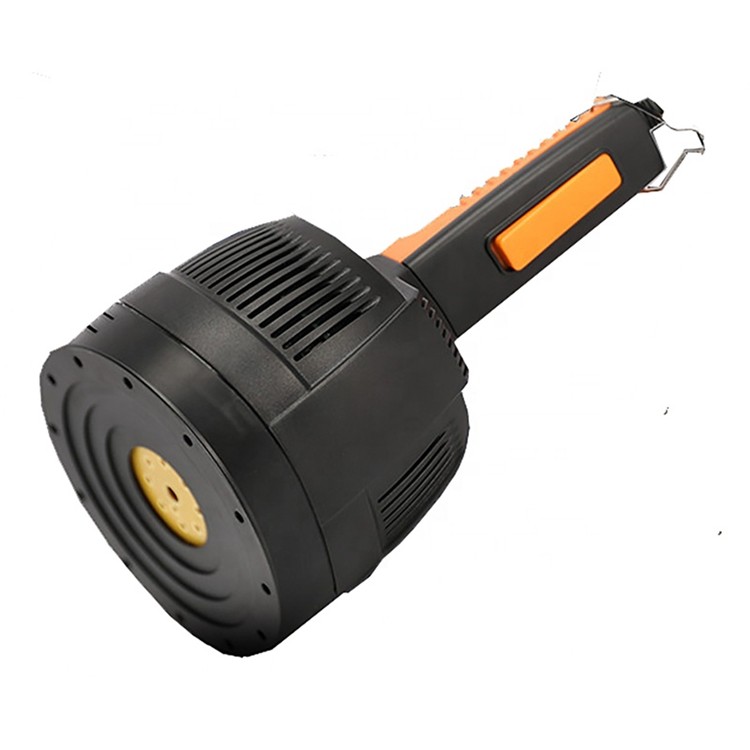

4.The induction plate made of pure copper coil makes the equipment operate more efficiently
5.Micro-computer control mode, the electronic memory function, adjustable power

EMAIL

Feature

1.Portable All-In-One machine. not like the other induction machine which's the operation panal and the sealing part are separate.
2.The panel is simple to operate, plug and play, overheat protection circuit. Copper induction coil, high efficiency, low consumption
3. All-around cooling holes provide faster ventilation and heat dissipation, preventing from short circuits caused by motor overheating.
4.The induction plate made of pure copper coil makes the equipment operate more efficiently
5.Micro-computer control mode, the electronic memory function, adjustable power


Parameter

Model

800B

800A

900

900

Color

Orange

Black

Blue

Voltage (V)

AC 220V

AC 110V/220V

Power (kW)

0.8(P1), 900(P2),
1000(P3), 1100(P4), 1200(P5)

Static
Current (A)

<0.1

Max Allowed Current (A)

<6

Working
Frequency (kHz)

30±5%

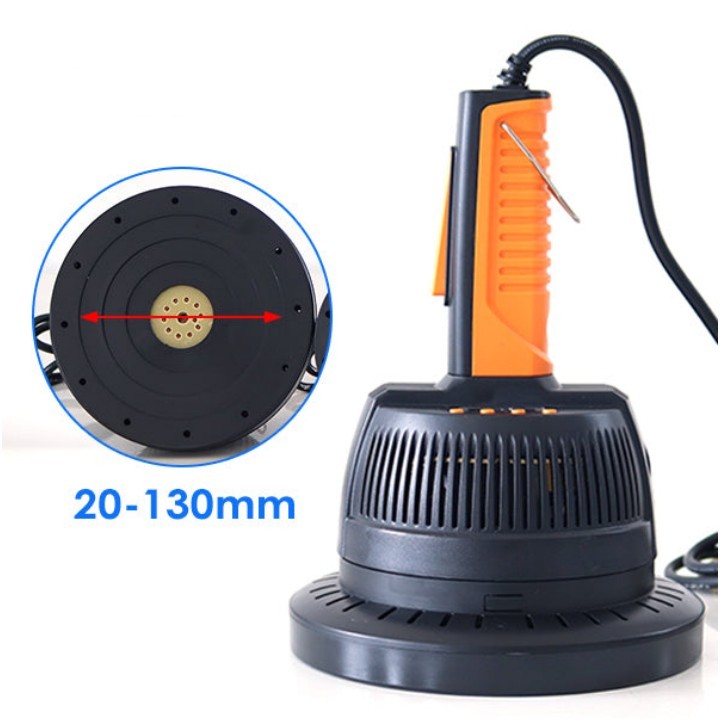

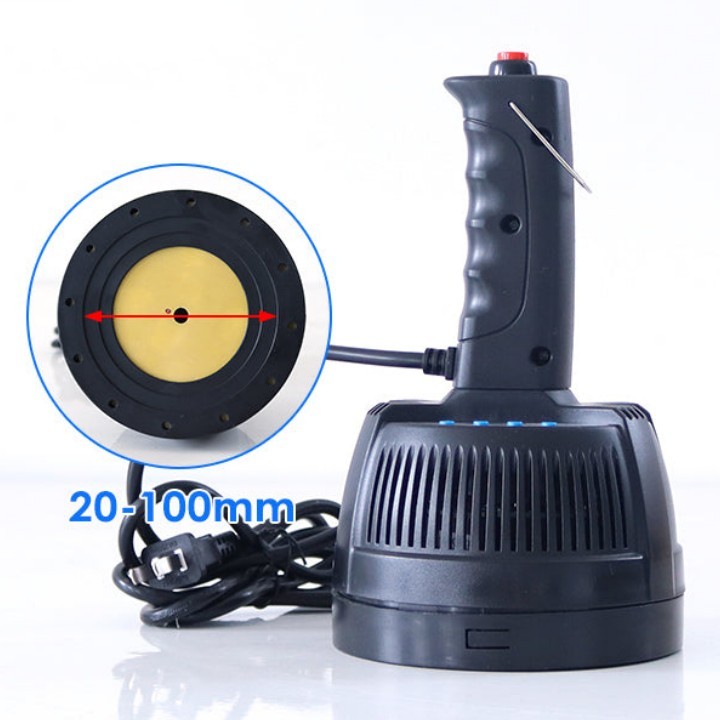

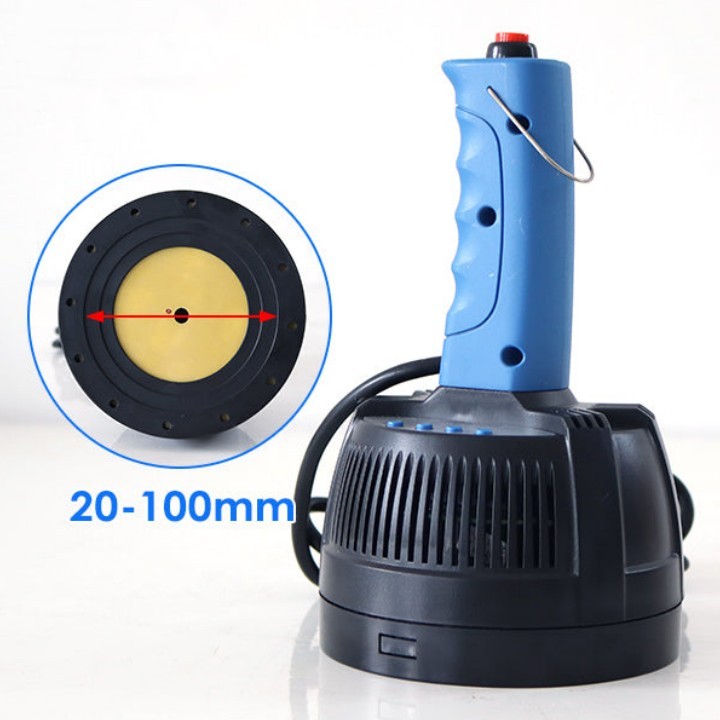

Sealing Diameter(mm)

φ20-φ130

φ20-φ100

Max
Environment Temperature (℃)

45

Relative Humidity (RH)

≤80%

Package Size (cm)

34*23*24

31*20*19

28*23*22

28*23*22

Gross Weight (kg)

1.8

1.3

1.1

1.2

Memory Function
