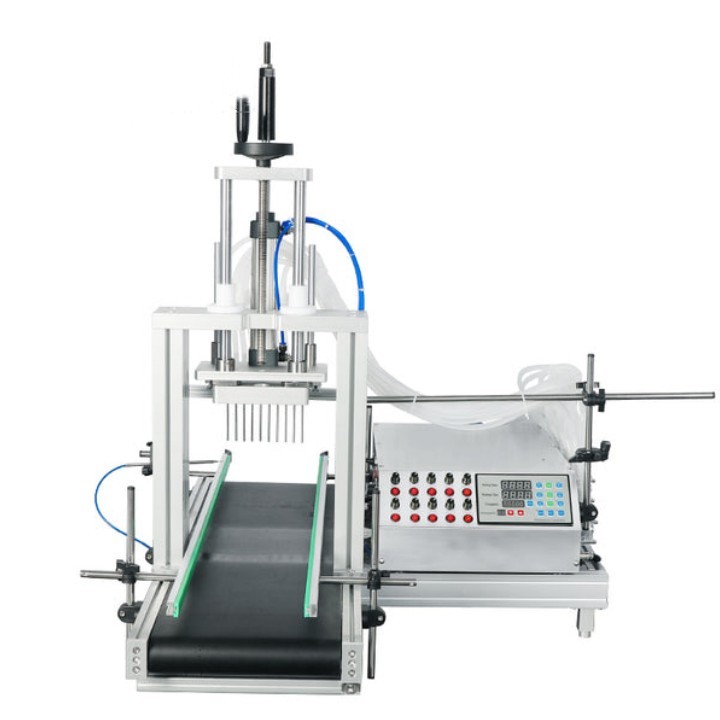

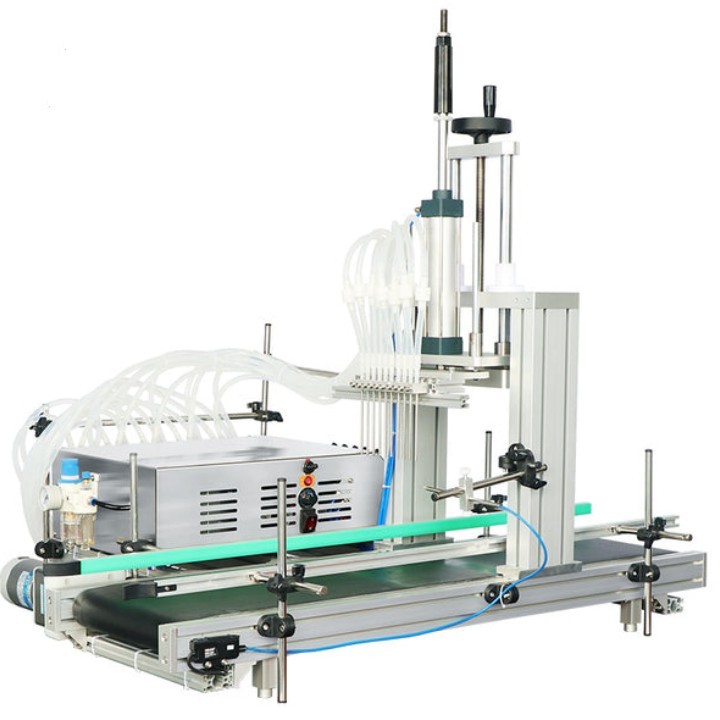

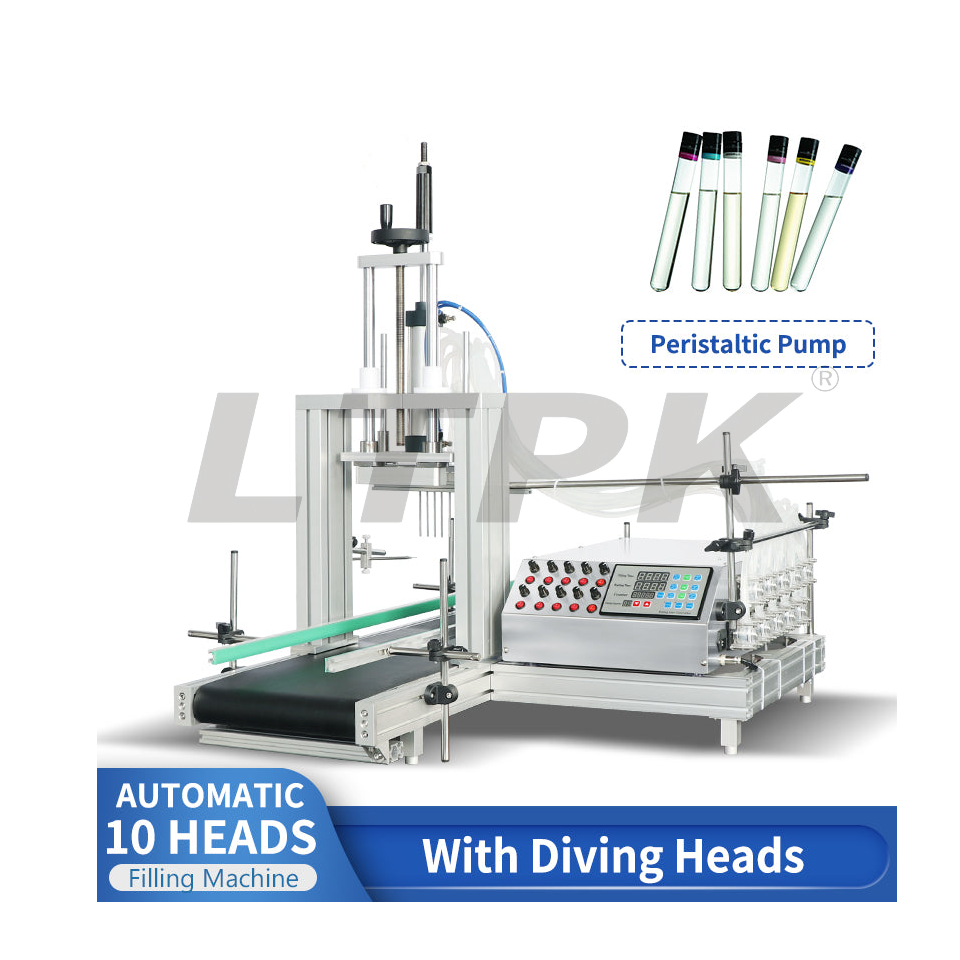

LT-DTPP10D 10 DIVING NOZZLES PERISTALTIC PUMP LIQUID FILLING MACHINE

With a conveyor, the 10-nozzle machine is used for filling liquid in tubes. It adopts peristaltic pumps, which is easy to clean and replace the filling tube. Also, the liquid won't be contaminated. This machine is widely used in pharmaceutical, medical, chemical and cosmetics industries.

EMAIL

DESCRIPTION

With a conveyor, the 10-nozzle machine is used for filling liquid in tubes. It adopts peristaltic pumps, which is easy to clean and replace the filling tube. Also, the liquid won't be contaminated. This machine is widely used in pharmaceutical, medical, chemical and cosmetics industries.

APPLICATION

This machine is suitable for filling liquid such as reagent, e-liquid, e-juice, chemical/biological agents, etc.

PARAMETER

Machine Model

LT-DTPP10D

Power Supply

AC110V/220V
50Hz-60Hz 60W*10

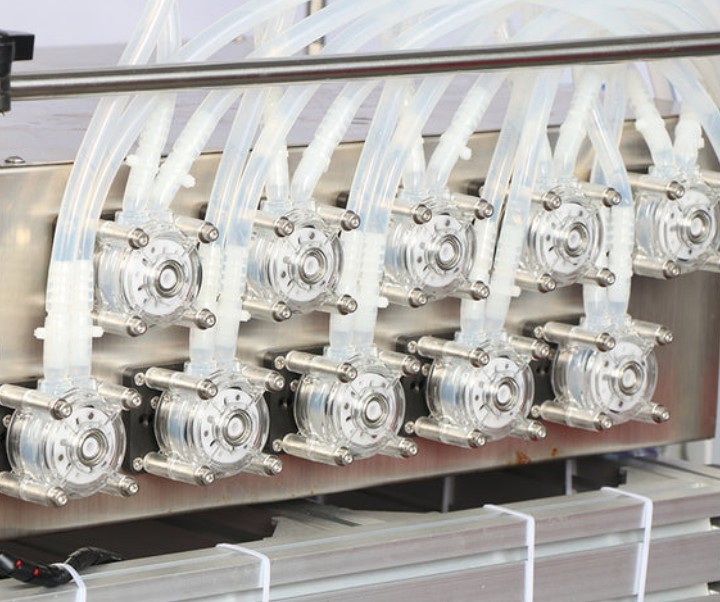

Machine Pump

Peristaltic Pump

Filling Range

≤50ml

Maximum Flow

650ml/min for each nozzle (based on water)

Filling Heads

10

(we can customize nozzles based on your demands)

Working Speed

About 70-90 bottles/min(based on 50ml-water)

Filling Accuracy

≤±1% (For water)

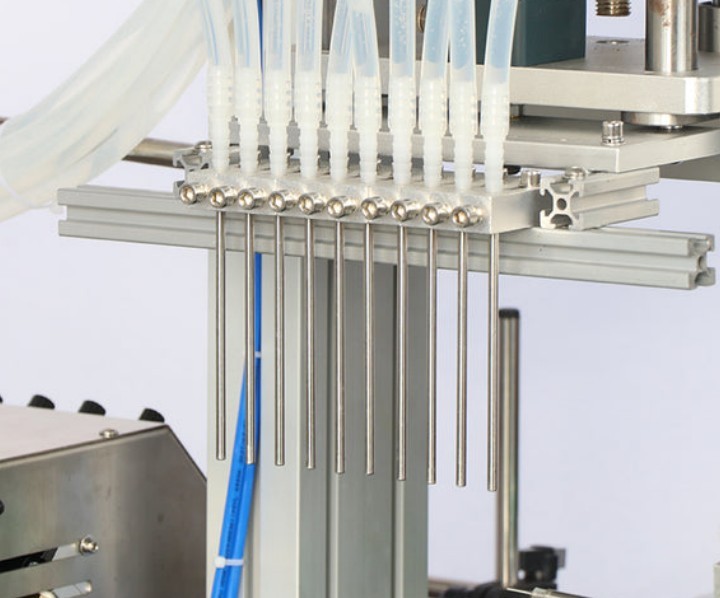

Diameter of Filling Head

4mm

Delay Range

0.01-999.9s

Conveyor Size

1080*350mm(L*W)

Machine Size

About 380*490*300mm(Without conveyor belt)

Net Weight

About 38kg

Package Size

About
1120*880*370mm

Package Weight

About 56kg
