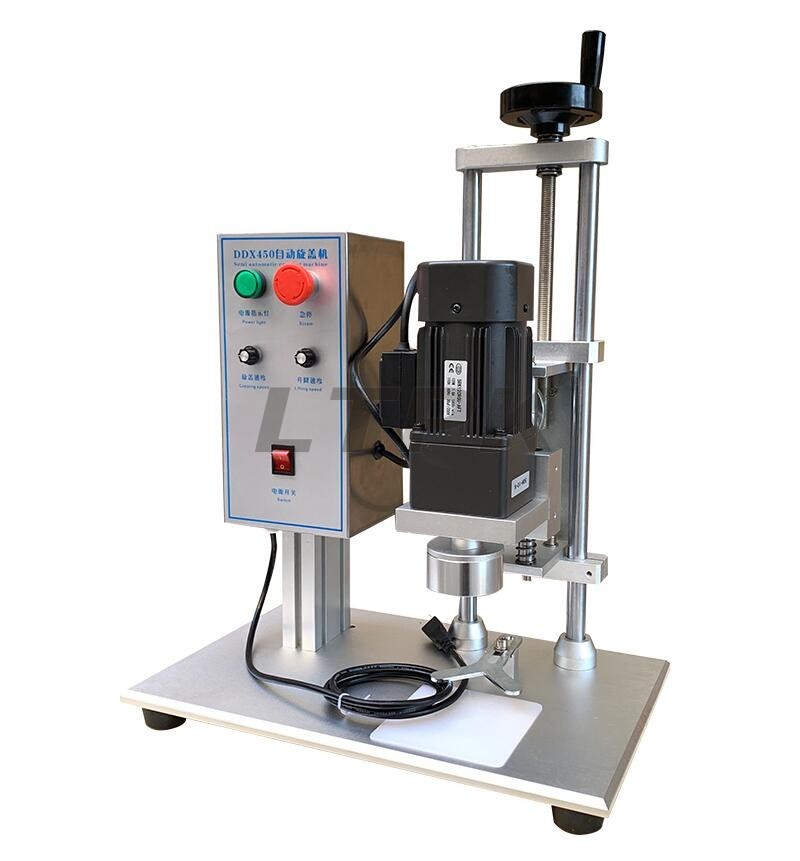

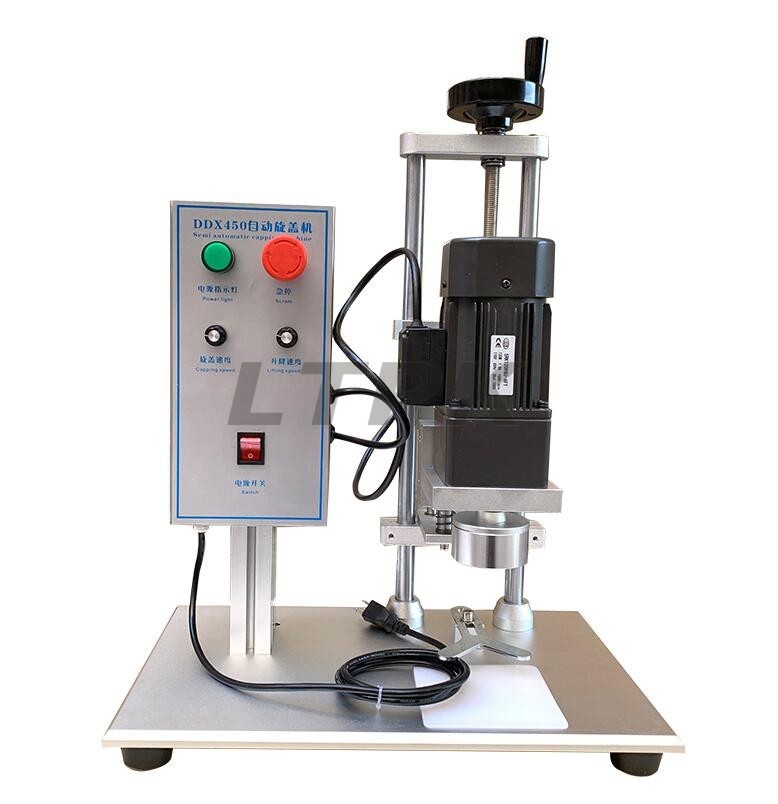

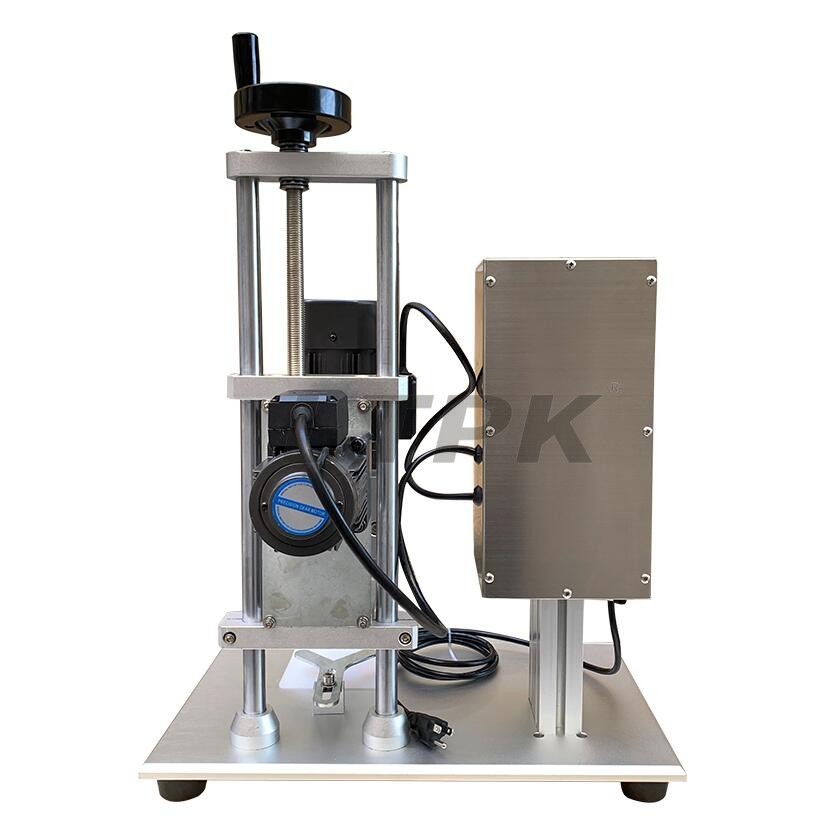

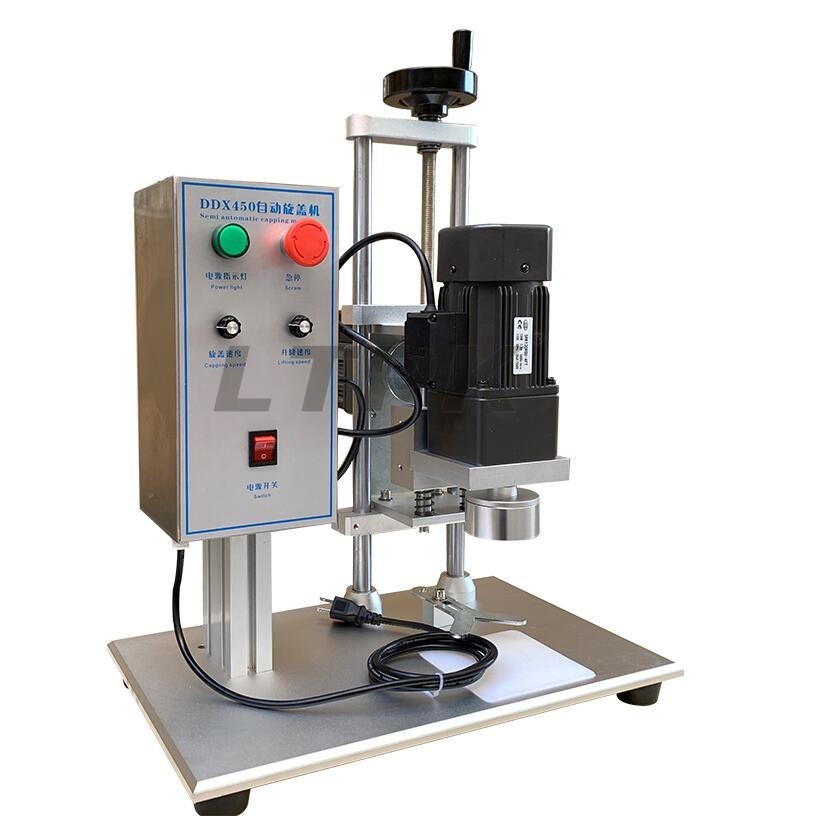

LT-DDX450 CUSTOM SEMI-AUTOMATIC CAPPING MACHINE


This machine is semi-auto capping machine,can save labor and make it easier for tightening or losening the caps of bottles.The working speed is adjustable,if your caps is not with many threads ,then you can adjust to lower working speed for fitting the caps and it won't damage your caps. And this machine is made with a fixing frame,can help you fix the bottle and will not tipped the bottle over.

EMAIL

Description



This machine is semi-auto capping machine,can save labor and make it easier for tightening or losening the caps of bottles.The working speed is adjustable,if your caps is not with many threads ,then you can adjust to lower working speed for fitting the caps and it won't damage your caps. And this machine is made with a fixing frame,can help you fix the bottle and will not  tipped the bottle over.



Parameter

Bottle Diameter

40-200mm

Bottle Cap Diameter

10-50mm(Can Customize)

Working speed

20-40 bottles/minute (depending on bottle and caps)

Suitable Bottle Heigh

≤240mm

Working voltage

AC220V/110V 50-60HZ 50W

Dimension

470x300x530mm

Package Size

490x440x660mm

Net Weight/Gross Weight

23kg/29.5kg



Application



This machine is suitable the screw pattern flat head plastic cover cap tighten, for example: tobacco tar bottle, mineral water bottles, medicine bottles, cosmetic, beverage bottles; special specifications cap, capping head can be customized according to cap diameter and cap height.



Operation Step

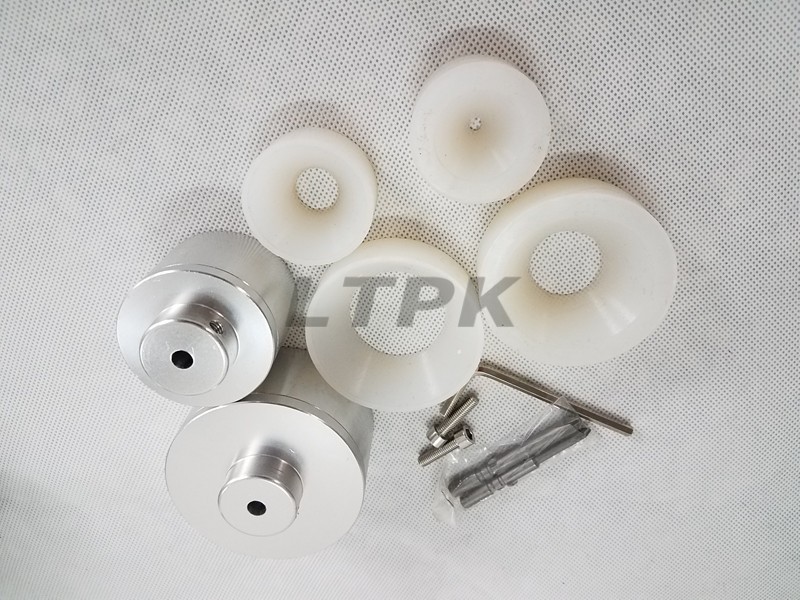

1. Choose rotary cap head according to the size of cap

2. Adjust the height according to the height of bottle

3. Adjust the locating block to move the bottle cap in the center of rotary cap

4. Do trial running and fine adjustment of  height until meeting cap requirements.
